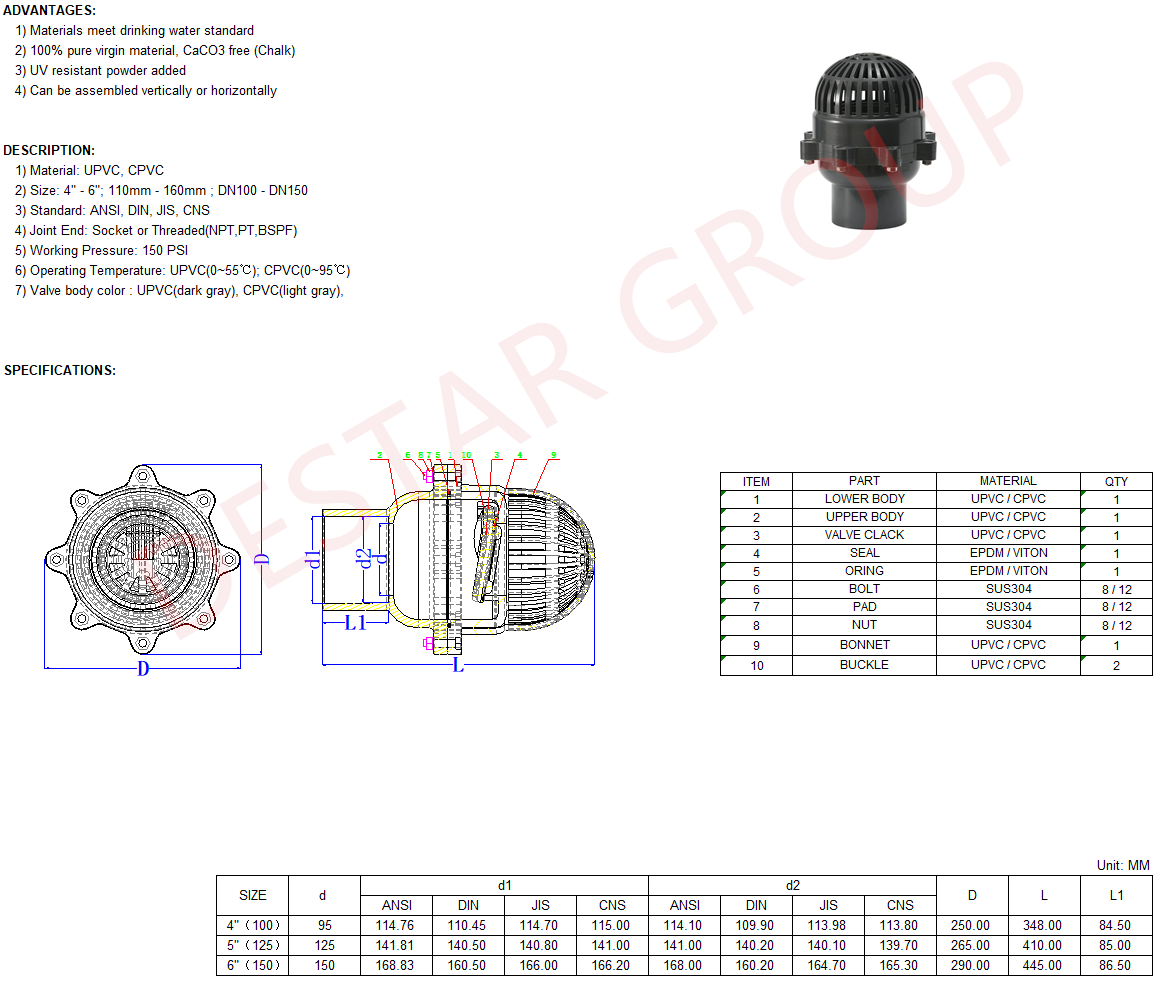

DESCRIPTION:

1) Material: UPVC, CPVC

2) Size: 4" - 6"; 110mm - 160mm ; DN100 - DN150

3) Standard: ANSI, DIN, JIS, CNS

4) Joint End: Socket or Threaded(NPT,PT,BSPF)

5) Working Pressure: 150 PSI

INTRODUCTION:

A foot valve prevents backflow, keeps pump suction lines primed, and has a strainer to prevent large debris from entering the system. Foot valves are necessary when pumps need to stay primed and the water source has debris (e.g., ponds, lakes, and wells). Foot valves work in wells and open water sources.

WF offers swing foot valves from 4"(DN100) to 6"(DN150) in UPVC and CPVC, and they are widely used in industries requiring reliable sealing and good adjustment characteristics, such as the transportation of corrosive media like sulfuric acid, hydrofluoric acid, phosphoric acid, chlorine, strong alkali, etc.
